We test three new additions to the carbon-fibre, aero road bike market from Boardman, Scott and Litespeed
Traditionally aero bikes use NACA (the American National Advisory Committee for Aeronautics) aerofoil shapes. The problem here is that the narrow shapes aren't a stiff as standard oversize tubing. To counteract this, thicker walls are used to resist some of the loads. The result? Heavier, flexier bikes. So Scott turned to Simon Smart. The ex-F1 aerodynamicist has come up against similar problems when trying to improve the performance and airflow around the suspension struts on Red Bull Racing's cars.
Truncated aerofoils are not new - Trek uses a similar design (a Kamm tail) on its Speed Concept TT bike but rather than simply slice the rear section off an aerofoil, Smart had found out in his previous life that the rear curvature, and its changing transition had a huge impact on the air's ability to mimic a full aerofoil's shape.
Thanks to his exclusive access to the Mercedes Petronas GP wind tunnel, he was able to research tubing shapes across the differing dimensions needed for various applications on the frame. The resultant tubes use effective aerofoils with profiles ranging from three-to-one up to 11-to-one, all staying within the UCI's limit of three-to-one for any bicycle component.
In fact, the torsional-load-resisting top and down tubes are three-to-two. The result is a supremely stiff structure that, according to Scott's data, is within a gnat's of the aero market leaders. With one part complete, it could go about finalising the lay-up to maintain self-imposed stiffness numbers.
Scott didn't only match the Addict's figures, the Foil is actually stiffer at both the head tube and bottom bracket. Two out of three wouldn't be bad, but thanks to fastidious attention to detail, the weight element was knocked into submission. Miniscule 17g full-carbon dropouts with shorter tubing overlap saved nearly 40g, carbon BB and headset bearing inserts a few more and improvements in the Integrated Moulding Process reduced internal joint material by 11 per cent.
The use of proprietary high-modulus fibres (HMX) allow stiffness to be added without excess bulk and the Naked External Tubing (NET) does away with a final cosmetic layer to save more weight. The result: an 840g finished frame weight compared to 790g from the Addict.

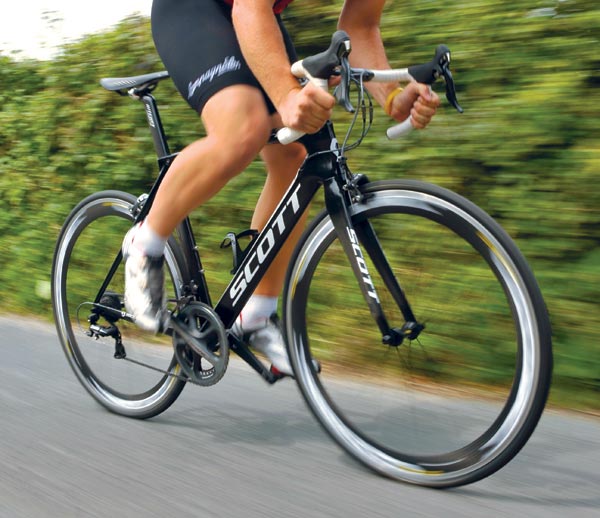

Hanging a full Dura-Ace groupset off such a frame and rolling it on Mavic's all-rounder Cosmic Carbone SL wheels would seem to be the makings of an exceptionally good bike, then. The stiffness numbers, low mass and wind tunnel data are all well and good but, as ever, the truth will always out.
When HTC-Highroad tested this frame at the 2010 Tour de France (Cav won five stages on a prototype) they came away saying 'great, fast, but way too stiff' - to be fair Scott had made the frame as requested but it claimed to have taken note all the same and production models are supposed to be a lot more forgiving.
If that were the case, we would hate to have felt how rigid those protos were. The Foil is incredibly stiff. For silky, Euro roads this is all well and good but in the UK we rarely have that luxury. On long rides, the buzz through the hands and feet kills you. Aching hands, numb fingers and hotspots in feet were reported.
As a race bike that is designed for nothing but pure performance, some bigger riders may be able to put up with it but, in our opinion, Scott has a few tweaks to make before the Foil wins this particular race.
Ritchey WCS Carbon
HMX NET, IMP aero carbon technology, road race geometry, integrated carbon dropout, standard seat tube, integrated BB
Ritchey WCS Carbon
Mavic Cosmic Carbone SL
